TUTORIAL

Mimir Tutorials

From questions to charts and dashboards: learn Mimir step by step.

Dashboard

A Dashboard arranges several Views on one page for ongoing tracking. Charts are added in batches through a three-step wizard, and the layout is adjusted in Edit Mode.

A Dashboard puts several Views on one page as a board you keep watching. It suits metrics you have already asked about and confirmed are worth long-term attention: after that you just read the dashboard instead of re-asking each time.

  1. Creating a dashboard​

    The plus sign to the right of the Dashboards section header in the sidebar opens the Name your dashboard dialog. It only needs a name. Press Save to create it.

    The Name your dashboard dialog, with the dashboard name entered

    A newly created dashboard is empty, and the screen prompts you to click + View to start arranging content. Several actions sit at the top of the page:

    • + View: add a chart.
    • Refresh: refresh the data on the dashboard.
    • Share: share this dashboard.
    • Edit Mode: enter layout editing to adjust each chart's size and position.

    The dashboard's last-updated time is shown at the same time.

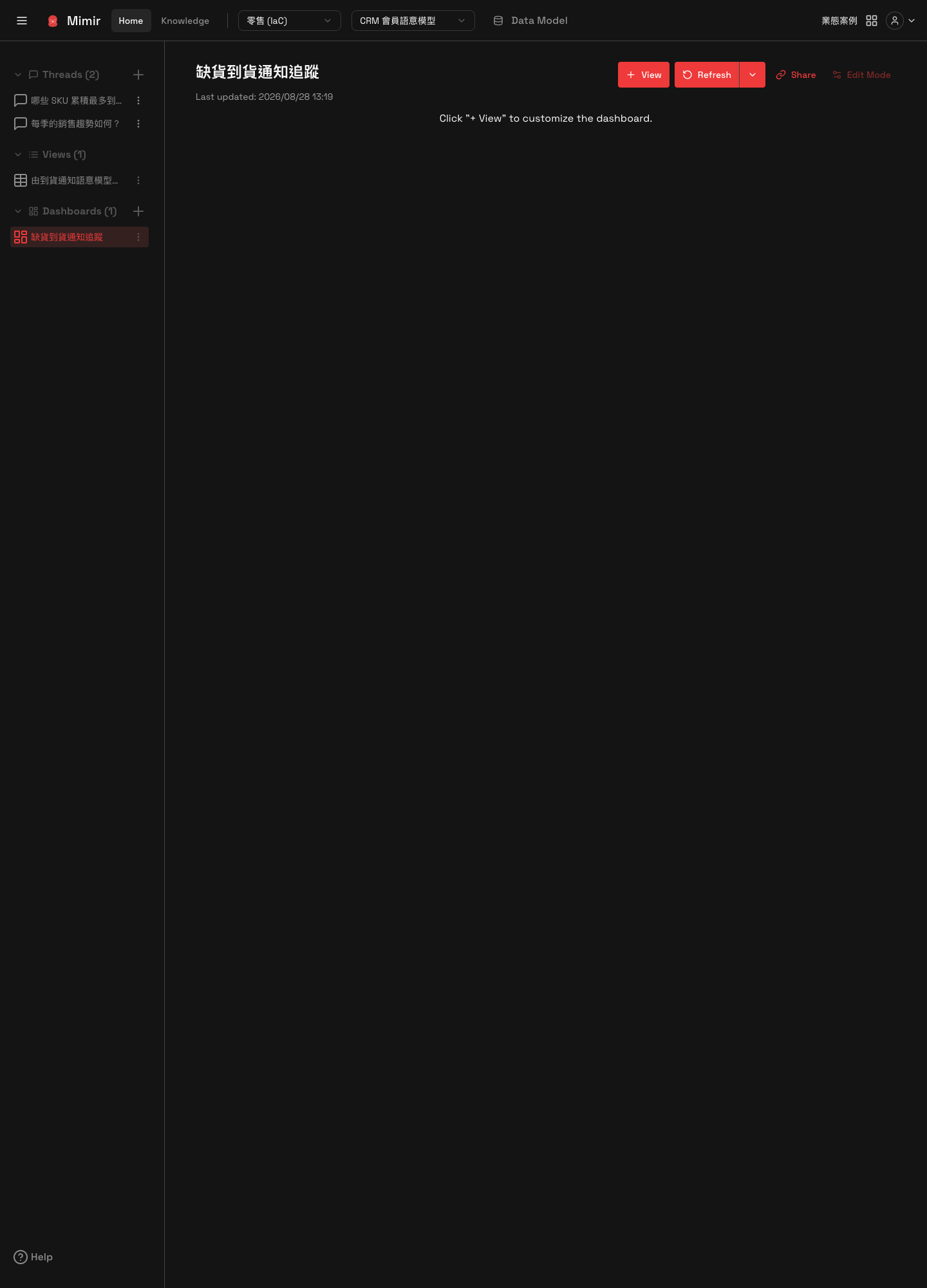

    A newly created dashboard with no charts on it yet

  2. Adding charts​

    Clicking + View opens a three-step wizard, titled Add View to plus the current dashboard's name:

    1. Select Views: pick from the saved Views, several at once if you want. Until you pick one, the screen says nothing is selected. Press Add Selected Views to continue.
    2. Preview: preview the charts about to be added and check they are right. You can also go back a step to adjust.
    3. Complete: finish adding.

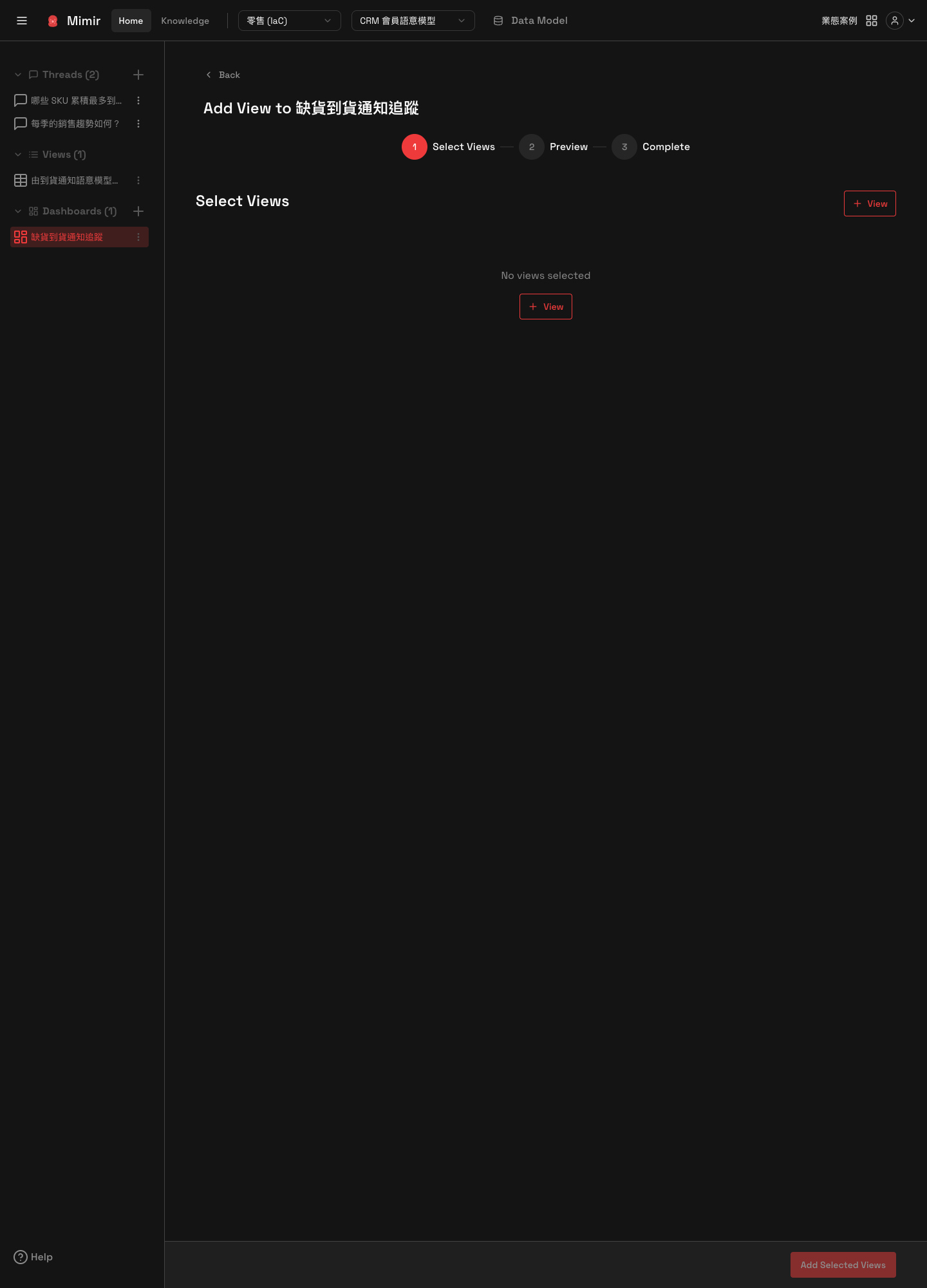

    The Add View wizard: the Select Views, Preview and Complete steps

    Besides adding in batches from the dashboard side, you can add from a single chart's side: click Add to Dashboard on a View's detail page, or click Pin to dashboard directly in the View data panel of a Thread answer.

  3. Adjusting the layout​

    Click Edit Mode to enter layout editing, where each chart's size and placement can be adjusted into a layout that reads well. Leaving edit mode saves the new arrangement.

    The menu on each Dashboard in the sidebar offers rename and delete.

  4. Sharing a dashboard​

    Click Share to open the sharing dialog, which explains that you can invite specific people by email or share a public link.

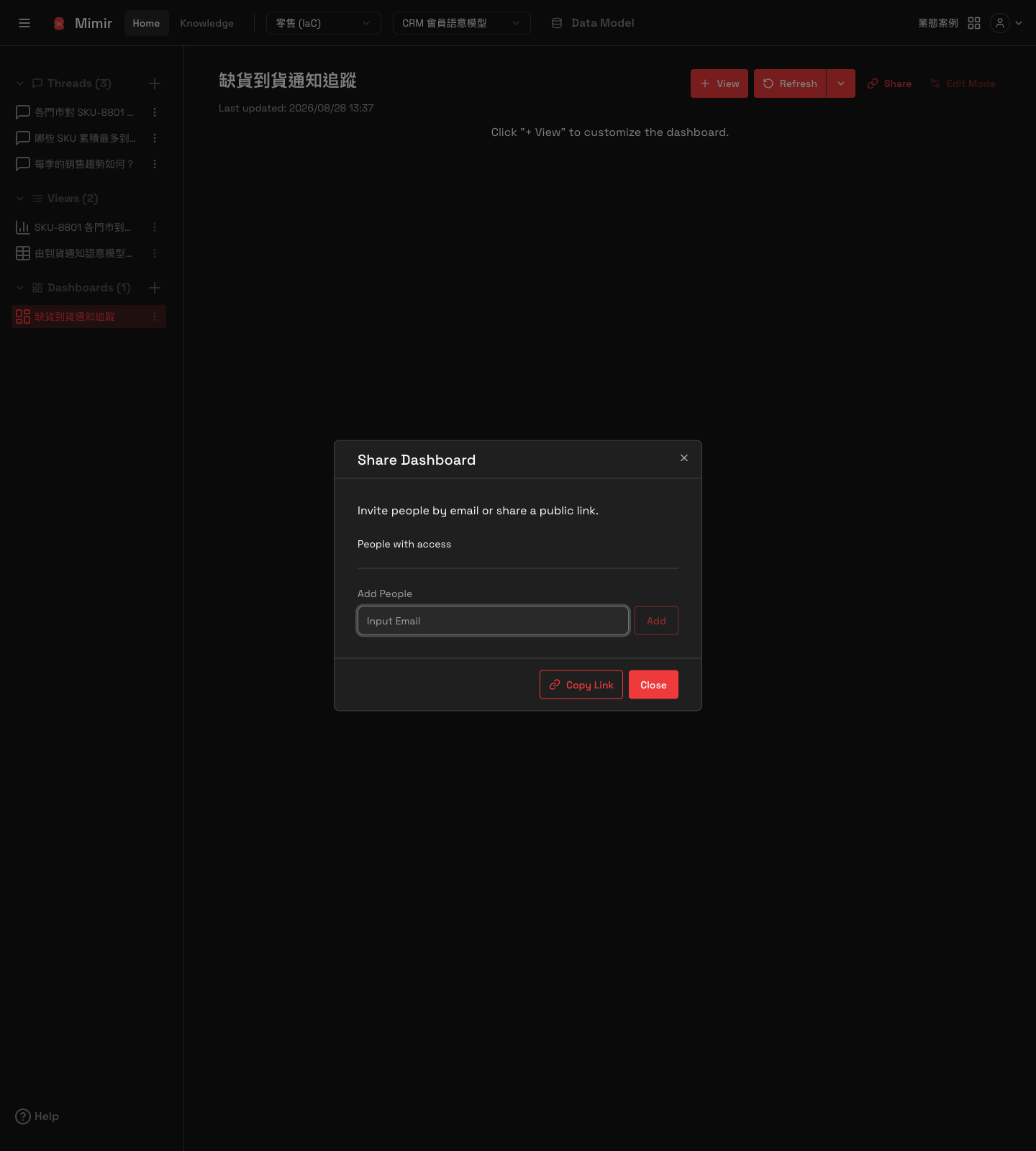

    The Share Dashboard dialog: the People with access list, the Add People invite field and Copy Link

    The dialog has two parts:

    • People with access: who currently has access. Enter someone's email in the Add People field and press Add to include them. A malformed email is rejected. People on the list can also be removed, with a confirmation step first.
    • Copy Link: copies a public link to share. A confirmation appears when the link has been copied.
