Button

Basic usage​

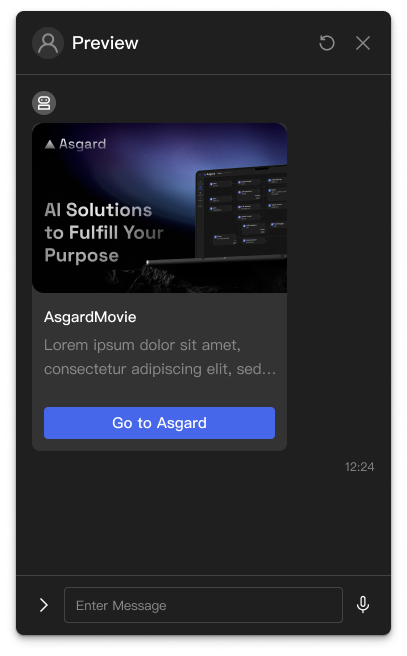

Button renders as a card in the chat interface, with a title, descriptive text and action buttons. Tapping a button triggers its action.

Template structure​

JSON​

{
  "type": "BUTTON",
  "thumbnailImageUrl": "https://example.com/bot/images/image.jpg",
  "imageAspectRatio": "rectangle",
  "imageSize": "cover",
  "imageBackgroundColor": "#FFFFFF",
  "title": "About the product",
  "text": "A well-made product with several capabilities.",
  "buttons": [
    {
      "label": "Buy now",
      "action": {
        "type": "uri",
        "uri": "https://shop.example.com/buy"
      }
    }
  ],
  "defaultAction": {
    "type": "uri",
    "uri": "https://shop.example.com/product"
  }
}

Properties​

type (required)​

The message template's type, always "BUTTON".

thumbnailImageUrl (optional)​

The URL of the thumbnail shown at the top of the card.

imageAspectRatio (optional)​

The image's aspect ratio:

• "rectangle": 1.51:1
• "square": 1:1

imageSize (optional)​

How the image is scaled:

• "cover": fills the area, possibly cropping
• "contain": shows the whole image, possibly with blank margins

imageBackgroundColor (optional)​

The image's background colour, as a hex code such as "#FFFFFF".

title (required)​

The card's heading.

text (required)​

The card's descriptive text.

buttons (required)​

The array of action buttons. Each has a label and an action.

defaultAction (optional)​

The action taken when the card's body — its title, text or image — is tapped. See the Action Object documentation.

quickReplies (optional)​

An array of quick reply buttons. See Quick Replies.

Examples​

To send a button card from Push Message:

1. Choose Expression in the Template field's dropdown.
2. Enter the following JavaScript in the editor.

A plain button card​

(() => {
  return {
    type: 'BUTTON',
    title: 'Support menu',
    text: 'Which service do you need?',
    buttons: [
      {
        label: 'Order status',
        action: {
          type: 'MESSAGE',
          text: 'I want to check my order',
        },
      },
      {
        label: 'Technical support',
        action: {
          type: 'MESSAGE',
          text: 'I need technical support',
        },
      },
    ],
  };
})()
