HTTP Request

Basic usage​

HTTP Request sends a request built from the configured URL, method, headers and body, and stores the response in the httpResponse variable for later processors. Use it for data integration, third-party services, webhooks, external authentication and anything else that talks to another system.

Configuration​

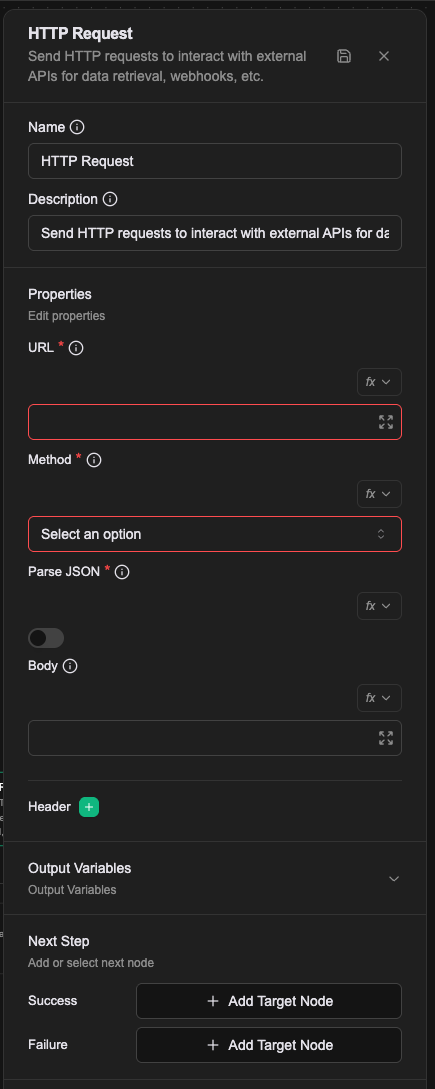

The node's property panel:

×

Name​

The name shown on the canvas, used to identify this processor within the workflow.

Description​

Explains what this processor is for, making the workflow easier to read.

Properties​

URL (required)​

The address to send the request to. Supports Literal, Expression and Template value types; see Expression introduction — resolving values.

Method (required)​

The HTTP method: GET, POST, PUT, DELETE, PATCH and others.

Parse JSON (required)​

Whether to parse a JSON response automatically. Off by default. When on, the httpResponse object gains a json field.

Body​

The request body, usually for POST and PUT. Supports Literal, Expression and Template value types; see Expression introduction — resolving values.

Header​

Additional HTTP request headers. Add as many as you need; Authorization and Content-Type are the common ones.

Underneath, headers are not a separate field. This processor sends every config key that is not url, method, body or parseJson as an HTTP header, using the key itself as the header name. Written as a Workflow CRD:

- name: url
  value: "https://api.sendgrid.com/v3/mail/send"
- name: method
  value: POST
- name: parseJson
  value: "false"
- name: Content-Type
  value: application/json
- name: Authorization
  expression: '"Bearer " + vars.sendgridApiKey'

That also means a header value supports Expression like any other config, so a key can live in a workflow variable and be composed here rather than hardcoded.

Relationships​

Success​

When the response status is 200, the workflow continues from this connection point. An httpResponse variable is produced with these fields:

Failure​

When the request fails (any status other than 200) or a network error occurs, the workflow continues from this connection point and a prevError variable holds the error.

Output: httpResponse​

On success the response lands in a variable called httpResponse -- the name is fixed and cannot be changed -- and always has three fields:

With Parse JSON on there is a fourth, httpResponse.json, holding the parsed body.

A worked example​

Look up one to-do item by the number the user typed, then send back its title.

The Push Message after it takes httpResponse.json.todo as an Expression.

For a POST, set Method to POST, build Body with an Expression (JSON.stringify({ name: userName }), say), and add Content-Type: application/json under Header.

Notes​

• The URL needs its protocol (http:// or https://).
• A response status of 400 or above goes to Failure, with the status and body in the error.
• With Parse JSON on, a body that does not parse is not a failure: the node still takes Success, it just leaves httpResponse.json unset. Check for it rather than assuming it is there.
• Body and Header both accept Expressions, so flow variables can be carried into the request.
