Exit

Basic usage​

Exit terminates workflow execution. Besides being an endpoint, it can act as a bridge into another workflow's Entry, joining two workflows together.

Configuration​

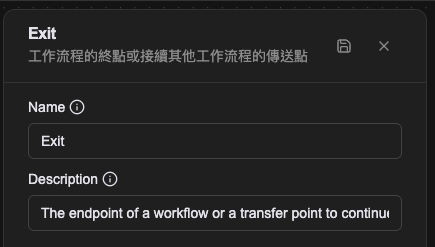

The node's property panel:

×

Name​

The name shown on the canvas, used to identify this processor within the workflow.

Description​

Explains what this processor is for, making the workflow easier to read.

Its shape in the Workflow CRD​

Like Entry, Exit is not a member of spec.processors but its own top-level field, spec.exits, which is why it appears in no processor type list.

spec:
  entries:
    - name: entry-main
      handlingProcessor: proc-query
  exits: []
  processors:
    - name: proc-query
      type: query-database

A workflow that needs no endpoint can simply write exits: []. Automation Tool workflows usually do, because a Response processor handing back a result is their endpoint and no separate Exit is needed.

Relationships​

Incoming connection​

Exit has only an incoming connection, receiving execution from the previous processor. Reaching Exit ends the workflow.

Connecting between workflows​

At the workflow-set level, an Exit can connect to another workflow's Entry, joining the two.

Examples​

A plain workflow endpoint​

The simplest structure: after Push Message runs, the workflow ends at Exit.

Chaining workflows​

An Exit pointing at another workflow's Entry makes a modular design possible, splitting a complex flow into smaller ones that are easier to reuse and maintain.

Notes​

• A workflow does not have to have an Exit.
• Exit is required only when you want to end this workflow and hand over to another Entry; the route is chosen on the Exit itself.
• A workflow can have several Exits for different ending situations.
