Carousel
Carousel is the message template for a horizontally scrolling list of cards.
Basic usage

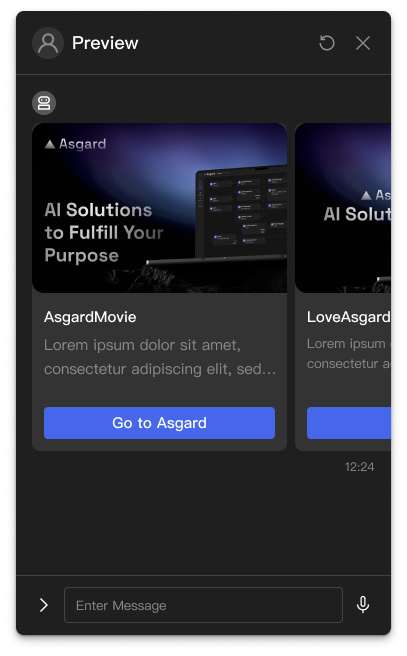

Carousel renders as a horizontally scrolling container of cards, each with an image, a title, descriptive text and action buttons. The user swipes sideways to browse the options.
Template structure
JSON
{
"type": "CAROUSEL",
"columns": [
{
"title": "Product A",
"text": "Well made and dependable.",
"buttons": [
{
"label": "See the details",
"action": {
"type": "uri",
"uri": "https://example.com/product-a"
}
}
]
},
{
"title": "Product B",
"text": "Fresh design, a better experience.",
"buttons": [
{
"label": "Buy now",
"action": {
"type": "uri",
"uri": "https://example.com/product-b"
}
}
]
}
]
}Properties
type (required)
The message template's type, always
"CAROUSEL".columns (required)
The array of cards; each element is one card.
Property Type Required Description thumbnailImageUrl String No The URL of the card's image imageAspectRatio String No The image's aspect ratio
•"rectangle": 1.51:1
•"square": 1:1imageSize String No How the image is scaled
•"cover": fills the area, possibly cropping
•"contain": shows the whole image, possibly with blank marginsimageBackgroundColor String No The image's background colour, as a hex code such as "#FFFFFF" title String Yes The card's heading text String Yes The card's descriptive text buttons Array No The action buttons, each with a label and an action defaultAction Object No The action taken when the card's body is tapped quickReplies (optional)
An array of quick reply buttons, shown beneath the whole carousel. See Quick Replies.
Examples
To send a carousel from Push Message:
- Choose
Expressionin the Template field's dropdown. - Enter the following JavaScript in the editor.
Recommending products
(() => {
return {
type: 'CAROUSEL',
columns: [
{
title: 'High-performance laptop',
text: 'Intel i7 processor, 16GB memory',
buttons: [
{
label: 'See the details',
action: {
type: 'uri',
uri: 'https://shop.example.com/laptop',
},
},
],
},
{
title: 'Smartphone',
text: '6.1-inch screen, 128GB storage',
buttons: [
{
label: 'See the details',
action: {
type: 'uri',
uri: 'https://shop.example.com/phone',
},
},
],
},
],
};
})()Comparing plans
(() => {
return {
type: 'CAROUSEL',
columns: [
{
title: 'Basic',
text: 'For individuals\nCore features\n5GB storage',
buttons: [
{
label: 'NT$ 99/month',
action: {
type: 'MESSAGE',
text: 'I choose the Basic plan',
},
},
],
},
{
title: 'Professional',
text: 'For small teams\nAdvanced features\n50GB storage',
buttons: [
{
label: 'NT$ 299/month',
action: {
type: 'MESSAGE',
text: 'I choose the Professional plan',
},
},
],
},
],
};
})()- Choose
